Water Purification
AMCO provides various system capacities to provide your plant with Reverse Osmosis-purified water. The systems can be designed as stand-alone with skid and day tank or as a stand-alone to provide RO-purified water to an existing tank.
Standard Features
- Fiberglass-Wrapped TFC Membranes
- Stainless Steel Pump, Valves, Pressure Gauges
- Corrosion-Resistant Piping
- 60Hz/230V-460V, 3-phase TEFC motor
- Automatic High and Low Feed Pressure Shut-off
- Permeate and Concentrate Flow-meters
- Automatic Feed Water Shut-off Valve
- Stainless Steel 5-micron Sediment Pre-filter
- Fiberglass Pressure Vessels
- Pre-filter Pressure Gauges
Optional Features
- Chemical Dosing System
- Clean-in-Place System
- TDS, pH, Temperature, Turbidity Instruments
- PLC Control
- HMI interface
- Remote Monitoring
- Special Color or Private Label
- 50Hz Motor
- Concentrate Recycling
- Permeate Flush
- Permeate Blending
- Crating

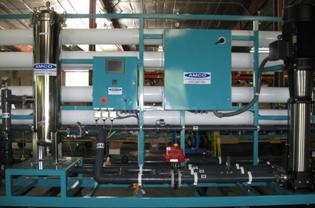

*124 gpm (28 m3-hr) system with integrated clean in place system and solution tank off skid
Standard System Specifications
SYSTEM CONFIGURATION |
MOTOR |
Approximate Shipping Dimensions
Inches ( cms) |
Approximate Skid Dimensiond
Inches / cms |
||||||
MODEL |
Gpd / (gpm) |
m3/d |
% |
Number and size element |
HP (KW) |
L x W x H inches |
Weights lbs |
L x W x H inches |
Weights lbs |
| AMCO-RO-5 | 7,200 (5) |
30 |
75 |
6 (4") |
5 (4) |
124x40x72 |
1,175 |
108x32x60 |
875 |
| AMCO-RO-10 | 14,400 (10) |
50 |
75 |
12 (4") |
5 (4) |
120x50x72 |
1,300 |
108x32x60 |
1,000 |
| AMCO-RO-15 | 21,600 (15) |
80 |
75 |
18 (4") |
5 (4) |
170x50x72 |
1,475 |
156x42x60 |
1,150 |
| AMCO-RO-20 | 28,800 (20) |
110 |
75 |
24 (4") |
7.5 (5) |
170x60x72 |
1,700 |
156x52x60 |
1,350 |
| AMCO-RO-25 | 36,000 (25) |
130 |
75 |
30 (4") |
10 (7.5) |
170x60x72 |
1,900 |
156x52x60 |
1,550 |
| AMCO-RO-30 | 43,200 (30) |
170 |
75 |
36 (4") |
15 (11) |
170x60x72 |
2,100 |
156x52x60 |
1,750 |
| AMCO-RO-45 | 64,800 (45) |
250 |
75 |
12 (8") |
15 (11) |
230x60x84 |
2,900 |
216x48x72 |
2,500 |
| AMCO-RO-60 | 86,400 (60) |
330 |
75 |
16 (8") |
20 (15) |
230x60x84 |
3,450 |
216x48x72 |
3,050 |
| AMCO-RO-75 | 108,000 (75) |
410 |
75 |
20 (8") |
20 (15) |
230x74x84 |
4,050 |
216x62x72 |
3,600 |
| AMCO-RO-90 | 129,600 (90) |
490 |
75 |
24 (8") |
20 (15) |
230x74x84 |
4,600 |
216x62x72 |
4,150 |
| AMCO-RO-110 | 158,400 (110) |
600 |
75 |
30 (8") |
25 (18) |
306x74x84 |
5,400 |
288x62x72 |
4,800 |
| AMCO-RO-130 | 187,200 (130) |
710 |
75 |
36 (8") |
25 (18) |
306x74x84 |
6,050 |
288x62x72 |
5,450 |
| AMCO-RO-150 | 216,000 (150) |
820 |
75 |
42 (8") |
40 (30) |
306x74x84 |
6,700 |
288x62x72 |
6,100 |
| AMCO-RO-175 | 252,000 (175) |
950 |
75 |
48 (8") |
40 (30) |
306x74x84 |
7,450 |
288x62x76 |
6,800 |
| AMCO-RO-200 | 288,000 (200) |
1090 |
75 |
54 (8") |
50 (37) |
306x74x96 |
8,300 |
288x62x84 |
7,600 |
| AMCO-RO-225 | 324,000 (225) |
1230 |
75 |
60 (8") |
50 (37) |
306x74x96 |
9,100 |
288x62x84 |
8,400 |
| AMCO-RO-250 | 360,000 (250) |
1370 |
75 |
66 (8") |
50 (37) |
306x74x96 |
10,000 |
288x62x84 |
9,250 |
| AMCO-RO-275 | 396,000 (275) |
1500 |
75 |
72 (8") |
50 (37) |
306x74x96 |
10,850 |
288x62x84 |
10,100 |
Assumptions
- Feed water of 500 mg/L TDS at 25 C, SDI < 3, Turbidity < 1
- Negligible permeate backpressure
- 3rd year of operation allowing for Flux Decline and Salt Passage Increase
- Flux, Minimum Brine Flow, and Recovery in accordance with membrane manufacturers recommendations
AMCO filtration and water softening systems provide the right combination of value and features required for any membrane pre-treatment application. Every AMCO system is manufactured from the highest quality components to the exacting standards of our customers' requirements, these systems are sized as pretreatment for RO units or they can be used as standalone units for a specific filtration or softening project.
AMCO Multi-media and Activated Carbon filters are available as single tank configuration or multiple units system that could work as one on line and one IN stand-by mode or multiple on demand configuration. Water softeners are available in single-tank, twin alternating and multiple on demand systems as well.
AMCO filters and softeners are the perfect solution for a wide variety of commercial and industrial water treatment applications including:
- De-chlorination
- Organics Removal
- Sediment Filtration
- Iron Removal
- Water Softening
Standard Features
- Fiberglass or Composite Media Tank
- Bronze or Plastic Control Valve (top-mount)
- PVC Control Valves (front-mount)
- 60Hz timer motor/controls
Optional Features
- Instrumentation or Pressure Gauges
- Demand Metered Control (single tank systems)
- 50Hz timer motor/controls
- Crating
Multi-Media Filtration System
|
MODEL |
Tank Sizes
(Dia x H) in |
Media Volume ft3 |
Service Flow (gpm) |
Control Valve option |
Pipe Size Inches |
Backwash Flow (gpm) |
Approximate Weight (lbs) |
|
AMCO-MF-8 |
8 x 35 |
0.75 |
2.60 |
Fleck 5600 |
1.0 |
4.2 |
95 |
|
AMCO-MF-9 |
9 x 48 |
1.0 |
3.30 |
Fleck 5600 |
1.0 |
5.3 |
125 |
|
AMCO-MF-10 |
10 x 54 |
1.5 |
4.10 |
Fleck 2510 |
1.0 |
6.5 |
161 |
|
AMCO-MF-12 |
12 x 52 |
2.0 |
5.90 |
Fleck 2510 |
1.0 |
9.4 |
225 |
|
AMCO-MF-14 |
14 x 654 |
4.0 |
6.10 |
Fleck 2510 |
1.0 |
12.8 |
375 |
|
AMCO-MF-16 |
16 x 65 |
5.0 |
10.502 |
Fleck 2750 |
1.5 |
21.2 |
500 |
|
AMCO-MF-21 |
21 x 62 |
7.0 |
18.10 |
Fleck 2750 |
1.5 |
29.0 |
765 |
|
AMCO-MF-24 |
24 x 72 |
10.0 |
23.60 |
Fleck 2850 |
2.0 |
37.7 |
1150 |
|
AMCO-MF-30 |
30 x 72 |
15.0 |
36.80 |
Fleck 2850 |
2.0 |
59.0 |
1750 |
|
AMCO-MF-36 |
36 x 72 |
20.0 |
53.10 |
Fleck 3150 |
2.0 |
85.0 |
2500 |
|
AMCO-MF-42 |
42 x 72 |
30.0 |
72.20 |
Fleck 3900 |
3.0 |
115.0 |
3650 |
|
AMCO-MF-48 |
48 x 72 |
40.0 |
94.50 |
Fleck 3900 |
3.0 |
151.0 |
4850 |
|
AMCO-MF-63 |
63 x 86 |
72.0 |
162.00 |
Air Operated |
4.0 |
259.0 |
8950 |
*Flows are based on 7.5 gpm/sq, ft, of bed area
Activated Carbon Filtration System
MODEL |
Tank Sizes
(Dia x H) in |
Media Volume (ft3) |
Service Flow (gpm) |
Control Valve option |
Backwash Flow (gpm) |
Pipe Size Inches |
Approximate Weight lbs |
|
AMCO-ACF-8 |
8 x 35 |
0.75 |
2.60 |
Fleck 5600 |
3.5 |
1.0 |
75 |
|
AMCO-ACF-9 |
9 x 48 |
1.0 |
3.30 |
Fleck 5600 |
4.4 |
1.0 |
90 |
|
AMCO-ACF-10 |
10 x 54 |
1.5 |
4.10 |
Fleck 2510 |
5.5 |
1.0 |
105 |
|
AMCO-ACF-12 |
12 x 52 |
2.0 |
5.90 |
Fleck 2510 |
7.9 |
1.0 |
160 |
|
AMCO-ACF-14 |
14 x 654 |
4.0 |
6.10 |
Fleck 2510 |
10.7 |
1.0 |
194 |
|
AMCO-ACF-16 |
16 x 65 |
5.0 |
10.502 |
Fleck 2750 |
14.0 |
1.5 |
254 |
|
AMCO-ACF-21 |
21 x 62 |
7.0 |
18.10 |
Fleck 2750 |
24.1 |
1.5 |
410 |
|
AMCO-ACF-24 |
24 x 72 |
10.0 |
23.60 |
Fleck 2850 |
31.4 |
2.0 |
680 |
|
AMCO-ACF-30 |
36 x 72 |
15.0 |
36.80 |
Fleck 2850 |
49.1 |
2.0 |
1025 |
|
AMCO-ACF-36 |
36 x 72 |
20.0 |
53.10 |
Fleck 3150 |
71.0 |
2.0 |
1630 |
|
AMCO-ACF-42 |
42 x 72 |
30.0 |
72.20 |
Fleck 3900 |
96.2 |
3.0 |
3095 |
|
AMCO-ACF-48 |
48 x 72 |
40.0 |
94.50 |
Fleck 3900 |
126 |
3.0 |
3095 |
|
AMCO-ACF-63 |
63 x 86 |
72.0 |
162.00 |
Air Operated |
159 |
4.0 |
4091 |
*Flows are based on 7.5 gpm/sq, ft, of bed area, for chlorine removal
Water Softener System, single tank system
MODEL |
Tank Sizes (Dia x H) in |
Resin Volume(ft3) |
Capacity (grains) |
Max. Salt Regeneration |
Brine Tank (dia,H) in |
Brine Tank Capacity (lbs) |
Backwash Flow (gpm) |
Control Valve option |
Approximate Weight lbs |
|
AMCO-SWS-8 |
8 x 35 |
0.75 |
22,500 |
11.25 |
18 x 40 |
400 |
1.75 |
Fleck 5600 |
80 |
|
AMCO-SWS-9 |
9 x 48 |
1.0 |
30,000 |
15.00 |
18 x 40 |
400 |
2.20 |
Fleck 5600 |
115 |
|
AMCO-SWS-10 |
10 x 54 |
1.5 |
45,000 |
45.00 |
18 x 40 |
400 |
2.75 |
Fleck 5600 |
135 |
|
AMCO-SWS-12 |
12 x 52 |
2.0 |
60,000 |
30.00 |
18 x 40 |
400 |
3.9 |
Fleck 2510 |
195 |
|
AMCO-SWS-14 |
14 x 654 |
4.0 |
120,000 |
60.00 |
24 x 41 |
600 |
5.4 |
Fleck 2510 |
240 |
|
AMCO-SWS-16 |
16 x 65 |
5.0 |
150,000 |
75.00 |
24 x 41 |
600 |
8.9 |
Fleck 2750 |
320 |
|
AMCO-SWS-21 |
21 x 62 |
7.0 |
210,000 |
105.00 |
24 x 50 |
800 |
12.1 |
Fleck 2750 |
450 |
|
AMCO-SWS-24 |
24 x 72 |
10.0 |
300,000 |
150.00 |
40 x 48 |
2000 |
15.7 |
Fleck 2900 |
535 |
|
AMCO-SWS-30 |
30 x 72 |
15.0 |
450,000 |
225.00 |
40 x 48 |
2000 |
24.6 |
Fleck 2900 |
585 |
|
AMCO-SWS-36 |
36 x 72 |
20.0 |
600,000 |
300.00 |
40 x 48 |
2000 |
35.4 |
Fleck 3150 |
660 |
|
AMCO-SWS-42 |
42 x 72 |
30.0 |
900,000 |
450.00
|
40 x 60 |
2500 |
48.1 |
Fleck 3900 |
710 |
|
AMCO-SWS-48 |
48 x 72 |
40.0 |
1,200,000 |
600.00 |
40 x 60 |
2500 |
63.0 |
Fleck 3900 |
1160 |
|
AMCO-SWS-63 |
63 x 86 |
72.0 |
3,780,000 |
1,080.00 |
40 x 60 |
2500 |
108 |
Fleck 3900 |
1560 |
*Capacity is based on 15 lbs of salt per regeneration
Twin Alternating Water Softener System, system
MODEL |
Tank Sizes (Dia x H) in |
Resin Volume x tank(ft3) |
Capacity (grains) |
Max. Salt Regeneration |
Brine Tank (dia,H) in |
Brine Tank Capacity (lbs) |
Backwash Flow (gpm) |
Control Valve option |
Approximate Weight lbs |
|
AMCO-TAWS-8 |
8 x 35 |
0.75 |
22,500 |
11.25 |
18 x 40 |
400 |
1.75 |
Fleck 9000 |
175 |
|
AMCO-TAWS-9 |
9 x 48 |
1.0 |
30,000 |
15.00 |
18 x 40 |
400 |
2.20 |
Fleck 9000 |
230 |
|
AMCO-TAWS-10 |
10 x 54 |
1.5 |
45,000 |
45.00 |
18 x 40 |
400 |
2.75 |
Fleck 9000 |
290 |
|
AMCO-TAWS-12 |
12 x 52 |
2.0 |
60,000 |
30.00 |
18 x 40 |
400 |
3.9 |
Fleck 9000 |
400 |
|
AMCO-TAWS-14 |
14 x 654 |
4.0 |
120,000 |
60.00 |
24 x 41 |
600 |
5.4 |
Fleck 9000 |
500 |
|
AMCO-TAWS-16 |
16 x 65 |
5.0 |
150,000 |
75.00 |
24 x 41 |
600 |
8.9 |
Fleck 9500 |
650 |
|
AMCO-TAWS-21 |
21 x 62 |
7.0 |
210,000 |
105.00 |
24 x 50 |
800 |
12.1 |
Fleck 9500 |
900 |
|
AMCO-TAWS-24 |
24 x 72 |
10.0 |
300,000 |
150.00 |
40 x 48 |
2000 |
15.7 |
Fleck 9500 |
1115 |
|
AMCO-TAWS-30 |
36 x 72 |
15.0 |
450,000 |
225.00 |
40 x 48 |
2000 |
24.6 |
Fleck 2850NXT |
1215 |
|
AMCO-TAWS-36 |
36 x 72 |
20.0 |
600,000 |
300.00 |
40 x 48 |
2000 |
35.4 |
Fleck 2850NXT |
1535 |
|
AMCO-TAWS-42 |
42 x 72 |
30.0 |
900,000 |
450.00 |
40 x 60 |
2500 |
48.1 |
Fleck 3150NXT |
1750 |
|
AMCO-TAWS-48 |
48 x 72 |
40.0 |
1,200,000 |
600.00 |
40 x 60 |
2500 |
63.0 |
Fleck 3900NXT |
2190 |
|
AMCO-TAWS-63 |
63 x 86 |
72.0 |
3,780,000 |
1,080.00 |
40 x 60 |
2500 |
108 |
Fleck 3900NXT |
2990 |
*Capacity is based on 15 lbs of salt per regeneration
Note:
- *Bigger diameter tanks are available upon request
- **Tanks are FRP as standard configuration and Carbon Steel or Stainless Steel are available upon request
Humidification needs are as varied as the facilities themselves. All systems are individually engineered and designed by experienced engineers and product managers. A survey of climate conditions, plant configurations and dimensions, heat loads, and other related processes determines the customer's individual humidification needs. The system is designed and manufactured to accurately meet the determined requirements.
Field trained technicians will install the systems and familiarize the customers' personnel with the various aspects and components. Our Installation Supervisor is available to provide assistance for customer-installed systems. Field service technicians and in-house staff continue the after-sale support. Additionally, American Moistening's warranties on parts and labor are automatically initiated. Service contracts are also available to assist the customer in their annual preventive maintenance schedule. These contracts may be purchased at any time.
American Moistening designs and manufactures a variety of products to meet individual needs. In addition to the high pressure systems mentioned here, air assist systems and small area space humidifiers are offered.
AMCO
10402 Rodney Street
Pineville, NC, USA 28134
Phone: (704) 889-7281
Fax: (704) 8897270
Divisions: Commercial & Industrial Humidification Control Systems Division|Water Treatment Division
Gas Turbine Cooling Division|Control Panel Division
Proudly manufactured in the USA for over 100 years.
